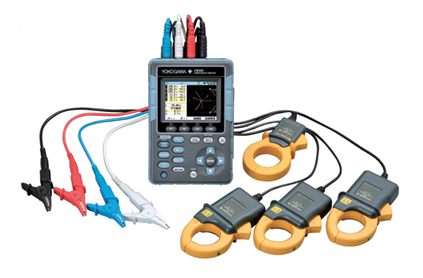

CW500 Power Quality Analyzer
Power Quality Measuring
Measure Temporary Malfunctions of the Power Line.
The CW500 captures temporary malfunction phenomena of the power line that can cause malfunction or destruction of devices due to voltage swell, voltage dip, interruption, transient voltage over, and inrush current by using a high sampling rate of 24 micro second and RUS calculation.
Event data contains the type of malfunction, occurred time or occurrence finish time, measured value and waveform of voltage and current of all channels for approx. 200 ms period.
This measurement method conforms to IEC standard 61000- 4-30 Class S

Measure Continuous Malfunction of the Power Line

Measure and display graphs and lists of up to the 50th Harmonic components of voltage, current, and power for each phase and total.

Measures 1-minute flicker (Pst, 1 min), short flicker, (Pst) and long flicker (Plt).

Unbalance rate:
Displays voltage and current unbalance rate on 3 phase wiring.

CW500Viewer (Included PC software):
Automatically display the graphical and report data by clicking on the file on the PC display.
Manage multiple settings of the unit.
Measure in real-time using USB communication.

Types of data:
Integrated power data, power quality event data, main unit setting data, and screen capture data.

Memory card and interface:
SD memory card, USB communication, Bluetooth communication (available for US, Canada and Japan only).

Power Measuring and Event Logging:
Simultaneously measures 3 CH Voltage input, 4 CH current clamp probe input, 2 CH DCV input.
Instantaneous/Average/Maximum/Minimum value list or trend graph screen of Voltage/ Current/Power/Power factor/Phase Angle/Phase Advanced Capacitance Calculation.
Integration Value of Active/ Reactive/Apparent Energy are each displayed for consumption and generation.
Demand monitoring which displays screens of present power consumption compared to aimed demand power values
