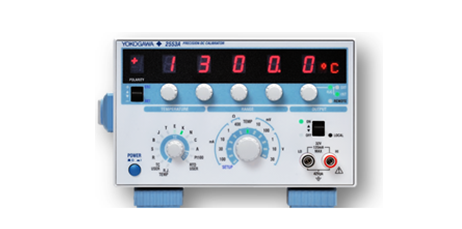

2553A DC Calibrator
Precision DC Cailibrator Model 2553A is powered by Yokogawa's highly accurate and precise voltage and current generation technology, capable of generating up to +/- 32 V DC and +/-120 mADC with high reliability and high stability. In addition to calibrating voltage and current meters, the 2553A is also capable of calibrating temperature meters and controllers which measure temperature by thermocouple or Resistance Temperature Detector (RTD). Output value is adjustable intuitively by dials for each digit.

The 2553A Precision DC Calibrator, like our other Calibrators and Sources, offers users the simple operation and reliability they have come to trust from Yokogawa.

Digital Display of Output

High Basic Accuracy

High Stability and Low Noise

High Resolution

With output ranges of ±10 mV to ±30 V and ±1 mA to ±100 mA plus 10 different types of Thermocouples and Pt100 RTD, the 2553A can effectively solve the calibration requirements for DC Analog Meters and various temperature measuring instruments and controllers.

High Accuracy
DC Voltage: +/- 75 ppm
DC Current: +/- 120 ppm

High Stability
Stability: +/- 15 ppm/h

Low Noise
Noise: 2 micro Volts rms

High Resolution
5.5 digits +/- 120000 count output resolution


Specification 2553A

Voltage generation
Range Source range Resolution Stability (1h)*
±(ppm of setting + μV)
Accuracy (180 days)*
±(ppm of setting + μV)
Accuracy (1 year)*
±(ppm of setting + μV)
10 mV ±12.0000 mV 100 nV 20 + 3 40 + 4 60 + 4
100 mV ±120.000 mV 1 μV 20 + 3 40 + 4 60 + 4
1 V ±1.20000 V 10 μV 5 + 10 40 + 10 60 + 15
10 V ±12.0000 V 100 μV 5 + 100 40 + 100 60 + 150
30 V ± 32.000 V 1 mV 5 + 300 40 + 300 60 + 450
Range Temperature Coefficient
±(% of setting + μV)/˚C
Max. Output
(Typical)
Output
Resistance
Output Noise
0.1 to10 Hz 10 Hz to 10 kHz
10 mV 10 + 0.1 –––– Approx. 1 Ω 1 μVrms 10 μVrms
100 mV 5 + 0.3 ≤10 mA ≤10 mΩ 2 μVrms 10 μVrms
1 V 3 + 1.5 120 mA ≤10 mΩ 2 μVrms 20 μVrms
10 V 3 + 15 120 mA ≤10 mΩ 15 μVrms 30 μVrms
30 V 3 + 45 30 mA ≤10 mΩ 20 μVrms 50 μVrms
Current generation
Range Source range Resolution Stability (1h)*
±(ppm of setting + μA)
Accuracy (180 days)*
±(ppm of setting + μA)
Accuracy (1 year)*
±(ppm of setting + μA)
1 mA ±1.20000 mA 10 nA 5 + 0.015 50 + 0.03 80 + 0.04
10 mA ±12.0000 mA 100 nA 5 + 0.15 70 + 0.4 100 + 0.5
30 mA ± 32.000 mA 1 μA 10 + 0.9 70 + 1.2 100 + 1.5
100 mA ±120.000 mA 1 μA 10 + 3 70 + 4 100 + 5
Range Temperature Coefficient
±(% of setting + μA)/˚C
Max. Output
(Typical)
Output
Resistance
Output Noise
0.1 to 10 Hz 10 Hz to 10 kHz
1 mA 3 + 0.0015 15 V ≤100 MΩ 0.015 μArms 0.5 μArms
10 mA 5 + 0.015 15 V ≤100 MΩ 0.03 μArms 1 μArms
30 mA 7 + 0.045 30 V ≤ 10 MΩ 0.05 μArms 2 μArms
100 mA 10 + 0.15 15 V ≤ 10 MΩ 0.3 μArms 10 μArms
Temperature generation for RTD
Type Source Range Resolution Accuracy
(180 days)*
Accuracy
(1year)* Temperature Coefficient Nominal
Current
Pt100 –200.0 to 850.0˚C 0.1˚C ±0.1˚C ±0.15˚C ±0.006˚C/ ˚C 0.5 to 2 mA
Resistance generation
Range Source Range Resolution Accuracy (180 days)*
±(ppm of setting + Ω)
Accuracy (1 year)*
±(ppm of setting + Ω)
Temperature Coefficient Nominal
Current
400 Ω 18.00 to 400.00 Ω 0.01 Ω 55 + 0.015 75 + 0.015 ±0.002 Ω/ ˚C 0.5 to 2 mA
* 1-hour stability values apply at 23±1˚C. Accuracy values apply at 23±5˚C. Add the temperature coefficient at 5˚C to 18˚C and 28˚C to 40˚C. Accuracy might be affected by instrument’s inside temperature increase immediately after sinking over 30 mA.

Temperature generation for Thermocouple Setting temperature : Accuracy for 1 year (±˚C)
R S B J T
–50˚C: 1.10 –50˚C: 1.03 400˚C: 1.00 –210˚C: 0.25 –250˚C: 0.72
0˚C: 0.80 0˚C: 0.75 600˚C: 0.70 –100˚C: 0.11 –200˚C: 0.29
100˚C: 0.55 100˚C: 0.56 1000˚C: 0.50 0˚C: 0.08 –100˚C: 0.16
600˚C: 0.40 400˚C: 0.47 1200˚C: 0.44 1200˚C: 0.15 100˚C: 0.10
1600˚C: 0.40 1600˚C: 0.44 1820˚C: 0.44 400˚C: 0.09
1768˚C: 0.45 1768˚C: 0.51
E K N C A
–250˚C: 0.50 –250˚C: 0.94 –240˚C: 1.00 0˚C: 0.30 0˚C: 0.34
–200˚C: 0.20 –200˚C: 0.30 –200˚C: 0.44 200˚C: 0.26 100˚C: 0.29
–100˚C: 0.10 –100˚C: 0.15 –100˚C: 0.21 600˚C: 0.25 600˚C: 0.28
0˚C: 0.07 0˚C: 0.11 0˚C: 0.16 1000˚C: 0.30 1600˚C: 0.47
1000˚C: 0.12 800˚C: 0.15 800˚C: 0.15 2000˚C: 0.51 2500˚C: 0.79
1300˚C: 0.21 1300˚C: 0.20 2315˚C: 0.70

General specification
Warm-up time Approx. 30 minutes
Operating environment
Temperature: 5 to 40˚C
Humidity: 20 to 80% RH*
Storage environment
Temperature: –15 to 60˚C
Humidity: 20 to 80% RH
Operating Height 2000 m or less
Operating Attitude Horizon
Rated power supply voltage 100 to 120 VAC/200 to 240 VAC
Allowable power supply
voltage fluctuation range
90 to 132 VAC/180 to 264 VAC
Rated power supply frequency 50/60 Hz
Allowable power supply
frequency fluctuation range
48 to 63 Hz
Max. power consumption 30 VA
Withstand voltage
Between power and case:
1500 VAC 1 min.
Dimensions 213 (W) × 132 (H) × 300 (D) mm
Weight Approx. 3 kg
* 20 to 70%RH for 30˚C and over

Communication Interface
USB interface (PC connection)
Connector Type B connector (receptacle)
Electric and mechanical
specifications
Complies with USB Rev. 2.0
supported transfer modes High Speed, Full Speed
Ethernet interface
Connector RJ-45 connector
Electric and mechanical
specifications
Confirms to the IEEE 802.3
Transfer methods 100 BASE-TX/10 BASE-T
Transfer speed Max. 100 Mbps
GP-IB interface
Electric and mechanical
specifications
Complies with IEEE St’d 488-1978
Functional specifications
SH1, AH1, T6, L4, SR1, RL1, PP0,
DC1, DT1, C0
Address 0 to 30

APPLICATION:

# Calibrating and testing analog meters
The 2553A can calibrate and test analog meters up to +/-32 V voltage and +/-120 mA current. The strong click from the dial enables easy adjustment of output value without actually looking at the front panel.

# Calibrating and testing temperature controllers
The 2553A can calibrate and test temperature controllers and data loggers using thermocouple and RTD. It provides 10 types of thermocouples regulated in IEC. By setting temperature value, it generates thermocouple electromotive power and calibrates temperature controllers.

# Calibrating and testing sensor transformers
The 2553A calibrates the transformers and transmitters for pressure, volume flow, and temperature. It also calibrates transformers for analytical instruments such as pH, ORP, EC, and DO meters. High voltage output accuracy of 2553A will enable support for transformers which require higher accuracy. 2553A will come in use even in developing and testing transformers.

# Simulating the two wire transmitters
In 30 mA range, the 2553A can sink the current. For example, by sinking the current from the distributors, it can simulate the two wire transmitters which output 4 to 20 mA signals.
