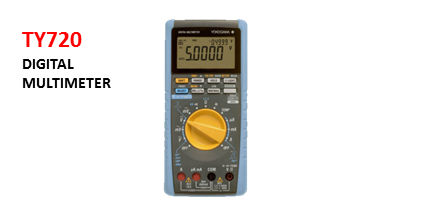

Digital Multimeter TY 720
TY720 DIGITAL MULTIMETER4.5-digit (50,000-count dual display, 51-segment bar graph display), RMS type Measurement Functions : Voltage, Current, Resistance, Continuity Check, Diode Test, Frequency, Capacitance, Temperature, Low Power Resistance
Features : Category IV 600V, Category III 1000V, Large Internal Memory (10,000 data), USB Communication function, Closed Case Calibration (User calibration function).
General specification
Measurement Functions :DC voltage, AC voltage, DCV+ACV, DC current, AC current, DCA+ACA, resistance, frequency, temperature, capacitance,
duty cycle, decibel calculation, continuity check, diode test, low-power resistance (TY720 only)
For AC voltage/current, RMS/MEAN detection can be switched (TY720 only).
For AC voltage/current, the low-pass filter can be turned on/off (TY720 only).
Additional Functions :Data hold/auto hold/peak hold (TY720 only), range hold, maximum/minimum/average values
resistance, capacitance zero, relative and percentage value calculation, manual-mode memory, logging-mode memory,
auto power off, backlight (white LED)
Display :5-digit LCD: 7-segment
Digital display: Main display; [50,000] counts
Sub-display ; [50,000] counts
Bar graph display: 51-segment
Polarity indicator: “-” appears automatically when the polarity is negative
Overrange indicator: “OL”
Low-battery indicator: “ ” appears at or below the minimum operating voltage.
Measuring Rate :6 times/sec (Frequency: 1 time/sec, Capacitance: max. 0.03 times/sec (50mF), Resistance: 4 times/sec)
Bar graph display: 15 times/sec
Operating Temp. and Humidity :-20 to 55°C; 80% RH or less (no condensation) 40 to 55°C: 70% RH or less
Storage Temp. and Humidity :-40 to 70°C; 70% RH or less (no condensation)
Temperature Coefficient :Add the accuracy 0.05/°C to the basic accuracy at a temperature within -20 to 18°C and 28 to 55°C. For continuous
measurements, add 1 digit/°C for DC voltage (DCV) and DC current (DCA). (Add 3 digits/°C for 50mV, 5A, and 10A ranges)
Power Supply :Four AA (R6) dry cells
Battery Life :Approx. 120 hours (for continuous DC voltage measurement with alkaline cells)
Withstanding Voltage :6.88kV for 5 seconds (between input terminals and casing)
Dimensions :Approx. 90(W) x 192(H) x 49(D) mm
Weight :Approx. 560g (including batteries)
Compliance with Standards :Safety EN61010-1, EN61010-031, 1000V CAT#, 600V CAT$, pollution level 2, indoor, 2000m max. above sea level
UL 61010-1, CAN/CSA-C22.2 No. 61010-1,
UL 61010-031, CAN/CSA-C22.2 No. 61010-031
EMC: EN61326-1 Class B, EN55011 Class B Group 1
Standard Accessories :AA (R6) dry cells: 4, Test lead set (98015): 1, Fuse (installed) 440mA/1000V and 10A/1000V, Instruction manual: 1
