product - YOKOGAWA-TEST-AND-MEASUREMENT - Insulation Tester

related article
-- no article available --

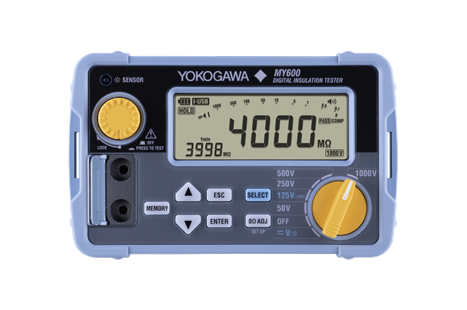

MY600 Digital Insulation Tester
Measurement Functions
Wide Insulation Test Voltages: 50V to 1,000 V
AC Voltage: 2 Vrmsto 600 Vrms (45 to 65 Hz)
DC Voltage: +/- 2 to 600 Vdc
Low-Resistance: 40.00 to 4,000

Measurement Accuracy
Voltage (AC & DC): 0.1% of reading +/- 4 digits
Resistance: 2.5% reading 8 digit (0.20 to 4000 ) 8 digit (0.00 to 0.19 )

Other Features
Two colors for judging measurement results
USB Version 1.1 Compliant
Insulation Detioration Diagnosis
AutomaticLED and Backlight
Line probe with switch

Resistance Measurement Accuracy (tolerance): Within 1 year of shipment
Rated Measuring Voltage
50V
100V
125V
250V
500V
1000V

Maximum Effective Reading
100 M
200M
250M
500M
2000M
4000M

First Effective Measuring Range
0.100 to 10.00 M
0.100 to 20.00 M
0.100 to 25.00 M
0.100 to 50.00 M
0.100 to 500 M
0.100 to 1000 M

Accuracy at First Effective Measuring Range
2% reading 2 digit
Second Effective Measuring Range
10.01 to 100 M
20.01 to 200.0 M
25.01 to 250.0 M
50.1 to 500 M
501 to 2000 M
1001 to 4000 M

Accuracy at Second Effective Measuring Range
5% reading
Accuracy at 0.050 to 0.099 M
2% reading 4 digit
Accuracy at 0.000 to 0.049 M
2% reading 6 digit
