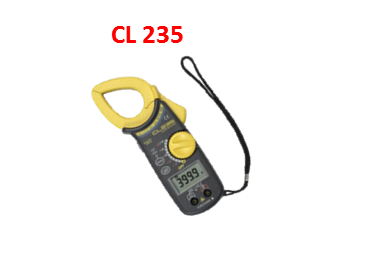

Clamp On Testers For AC DC Current CL235
Feature :
True RMS display
AC/DC current measurements with current ranges up to 600A for
AC and 1000A for DC
AC/DC voltage, resistance and frequency measurements 33mm in diameter of measurable conductor
Sleep function
Data hold function
Approved for comformity to safety standards EN61010-1,EN61010-2-031, EN61010-2-032 (CAT. III 600 V)
General Specification :
Description True RMS ACA, ACV, DCA, DCV
Method of detection True RMS
Display LCD (Digital display: 3999 counts)
DC Current Range 400/1000A
DC Current Resolution 0.1A
Response Time Approx. 2 second
Range Switching Auto-range
Data hold On all range
Operating temperature and humidity 0 - 40C, 90% RH or less (no condensation)
Influence of conductor position 2% or less
Safety Standard Conforms EN61010-1, EN61010-2-031, EN61010-2-032
Circuit voltage 600 Vrms or less
Withstanding voltage 5.55 kV AC for one minute
Power Supply 6F22 (006P) 9V x 1
6LR61 x 1
Battery Life Approx. 15 hours (continuous)
Consumed current Approx. 15 mA
Sleep Function Automatically powered down in about 30 minutes after the last switch operation
Diameter of measurable conductor 33 mm at maximum
Dimensions Approx. 91 (W) x 210 (H) x 40 (D) mm
Weight Approx. 450 g
Accessories Batteries, carrying case (93032)
User's manual (IM CL235)
Peak Hold On AC/DC current range, AC/DC voltage range
