product - YOKOGAWA-TEST-AND-MEASUREMENT - Calibrators and Standards

related article
-- no article available --

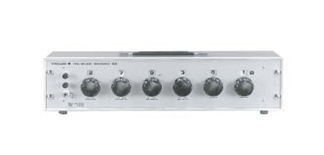

2793 Decade Resistance Boxes 279303
Up to 100MΩ in 100Ω stop
Low voltage coefficient
Variation of the resistance value is less than 0.1% at 1MΩ and 10MΩ steps against 100V application, and less than 0.04% at 100Ω 1Ω 10Ω, and 100Ω flaps against 10V application.
Shock and vibration proof construction
Easy-to-read in line indication
Best suited for calibration of insulation resistance testers and bridges

Specifications
Dielectric Strength 2,500 AC for one minute between Panel and Circuit
Insulation Resistance More then 1011Ω at 1,000V DC between panel and circuit
Dimension 110 x 491 x 140 mm
4 3/8 x 19 3/8 x 5 1/2 in.
Weight 4.8 kg
106 lbs
Resistance Range 0 to 1,111.110Ω
Dial Composition 100Ω x 10 + 1kΩ x 10 + 10kΩ x 10 + 100kΩ x 10 + 1MΩ x 10 + 10MΩ x 10
Resolution 100mΩ
Accuracy 100Ω, 1kΩ, 10kΩ, 100kΩ Steps - (0.05Ω + 0.05mΩ)
1 MΩ and 10MΩ Steps - 0.2%
(At temperature 23 2C, humidity below 75%, including residual resistance of approx. 0.05Ω).
